High Pressure Pro Cart (30 LPM at 500 bar)


In stock

Removes hard fouling, debris, corrosion and coatings
Drives multiple underwater tools
Heavy duty skid
Big cartridge filter at pump inlet

SKU: HDE30-550-30PRO Category: Tags: , ,

The compact and powerful HDE30-500-30PRO electric high pressure power pack provides 30 LPM at 500 bar and is suitable for DiveWise Equipment cavitation gun and underwater tools. This powerpack has a stainless steel pump head for salt water usage and a frequency controller for efficient pressure adjustment. DiveWise Equipment has developed this series especially for the medium to hard high pressure cavitation problems.

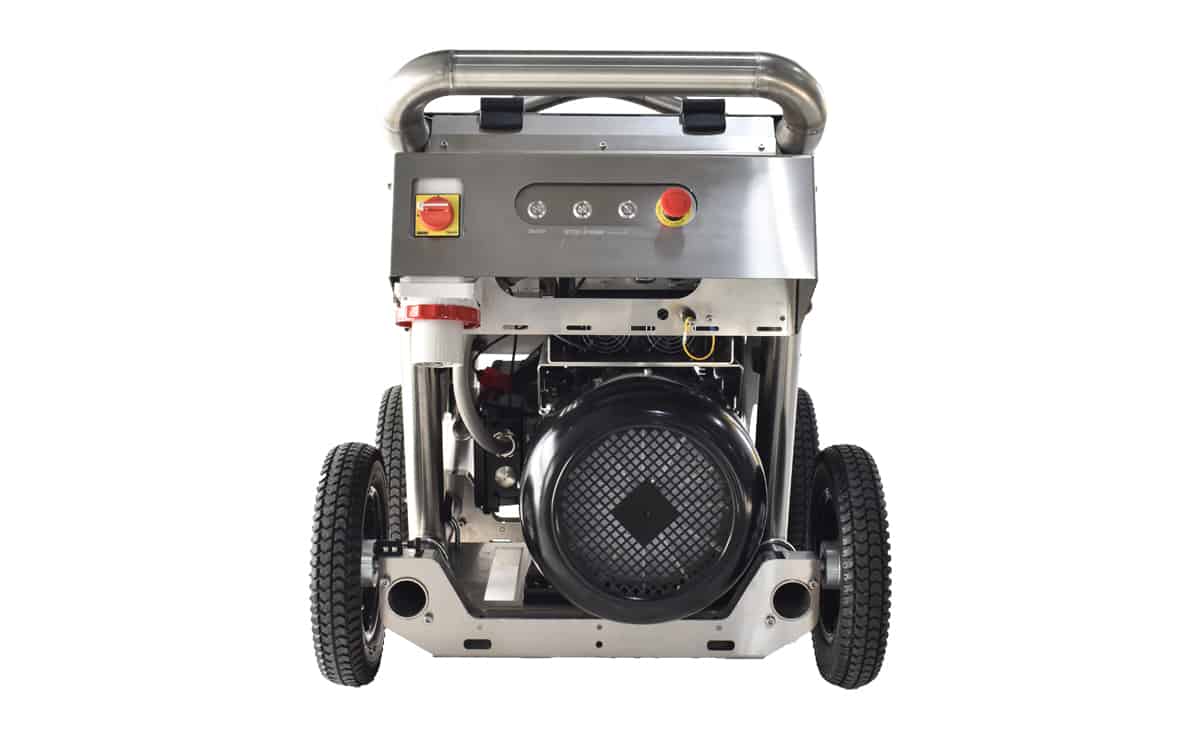

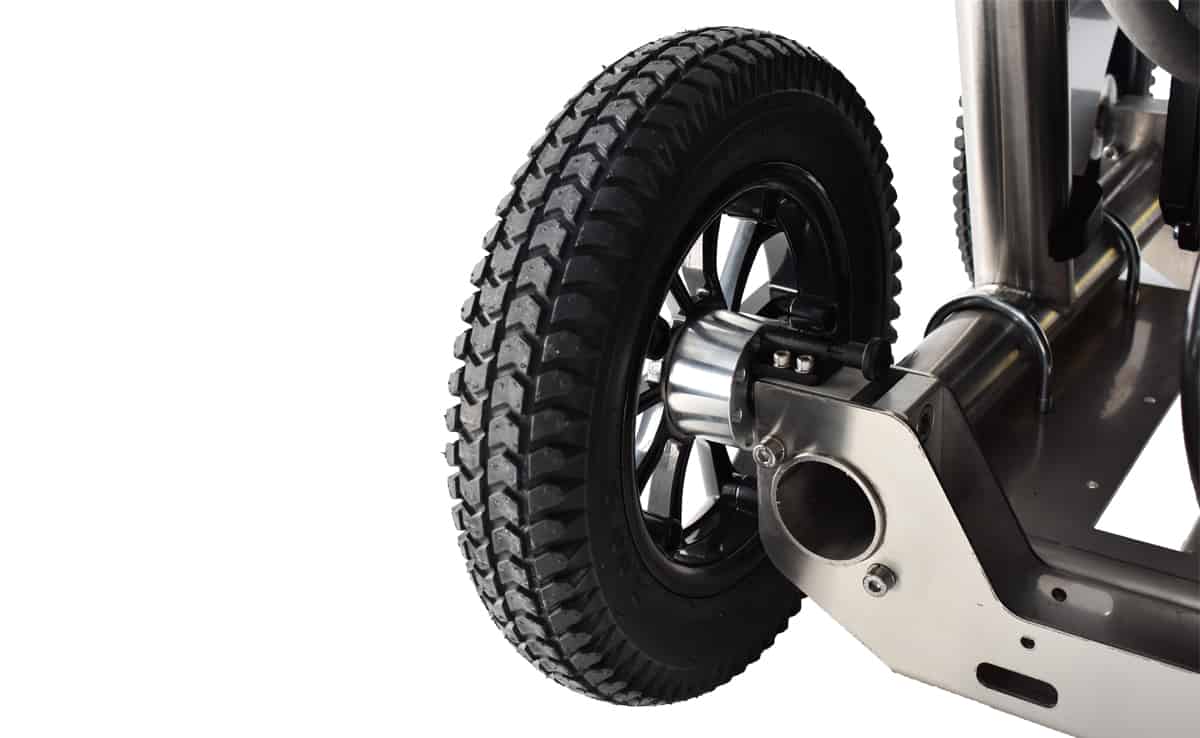

Electric motor 30 Kw / 3-phase 400VAC 50 Hz (optional 440 VAC 60 Hz) / 63A 3-phase + 0 connection / 4 wheels with air tyres / Max. 1500 rpm / Strong, lightweight stainless steel frame with lifting eye / Max. pressure 30 LPM at 500 bar (7.9 gpm at 7,250 psi) / Frequency controller for working with higher pressure in lower speed ranges / CE certified / Direct driven pump / Suitable for cleaning with seawater due to the stainless steel pump head / Overheating thermostatic valve / Hour counter / Remote switch and motor cut-out with thermal relay / Emergency stop button / Big water filter at pump inlet, readily serviceable cartridge type / Pressure release valve for dry shutoff gun / Zero hose pressure regulator and emergeny-stop remote for SIR certification (optional) / Weight 300 kg) / Dimensions: 1200x750x900mm
